JAKCOM CDS Product Description



  • JAKCOM CDS Replicator
    For R5 Smart Ring



  • Product introduction
    JAKCOM CDS replicator is a special RFID reader-writer that can replicate IC and ID proximity cards into the R5 smart ring.

    Packing List
    CD2 Replicator x1
    CD2 Data Cable x1
    ID2 Replicator x1
    ID2 USB cable x1
    Instruction book x1



  • Structure Description
    A. IC Card Reading/Writing Area
    B. ID Card Reading/Writing Area
    C. Indicator Light
    D. USB Cable Socket
    E. Reading Button
    F. Writing Button
    G. Power Switch
    H. ID Card Reading/Writing Area
    1. Indicator Light 1
    J. Indicator Light 2
    K. Charging Socket

    Applicable Card Type:
    IC Cards:
    Class A and Class B cards with carrier frequency of 13.56MHz and conforming to ISO-14443 standard, such as MIFARE card (Classics, DESFire), M1, S50, UID, CUID, FUID, UFUID, etc.
    ID Cards:
    Proximity cards with carrier frequency of 125KHZ, conforming to ID standard and only containing the card number, such as EM4305, 5200, 8800, T5577, ZX-F08, etc.



  • Replicator Introduction:
    1. The CD2 replicator can replicate IC card to No. 1 or No. 2 IC module of the R5 ring;
    2. The CD2 replicator can replicate ID card to No. 1 ID module of the R5 ring;
    3. The ID2 replicator can replicate ID card to No.2 ID module of the R5 ring.



  • Replicate IC card to the R5 ring:
    1. Use the CD2 data cable to connect the CD2 replicator to the computer of windows system, and the indicator is red;
    2. Open the newly created "USB disk" in the computer;
    3. Double click to download the operating program of corresponding language;
    4. Unzip the downloaded file, and then open the operating program;
    5. Put the target IC card on the IC card reading area, the indicator becomes green, and then click "Start decoding";
    6. After successful decoding, remove the target IC card, wait for the indicator to turn red;
    7. Put the No.1 or No.2 IC module of the R5 ring on the reading area of the IC card, and the indicator becomes green;
    8. Click "Write card", wait until the card is written successfully, then the IC card is replicated.



  • Replicate ID card to No.1 ID module of the R5 ring;
    1. Use the CD2 Replicator, and the startup and connection process is the same as above;
    2. Put the target ID card on the ID card reading area, and the indicator becomes green;
    3. Click the "LF Card" label page, and then click "Read";
    4. After successful reading, remove the target ID card, and wait for the indicator to turn red;
    5. Put the No.1 ID module of the R5 ring on the ID card reading area, and the indicator becomes green;
    6. Click "Write", wait until the card is written successfully, then the ID card is replicated.



  • Replicate ID card to No. 2 ID module of the R5 ring;
    1. Use the ID2 USB cable to connect the ID2 replicator to the USB power;
    2. Turn the ID2 replicator switch to "ON", and indicator 1 becomes blue;
    3. Put the target ID card on the ID card reading area;
    4. Press the "R" key to read. If the reading is successful, indicator 2 becomes green;
    5. Put No. 2 ID module of the R5 ring on the ID card reading area;
    6. Press "W" key to write. If the writing is successful, indicator 2 will flash and remain green;
    7. If the writing fails, indicator 2 will extinguish, then you need to read the target card and then try to write again;
    8. After use, turn the ID2 replicator switch to "OFF", and indicator 1 will extinguish.

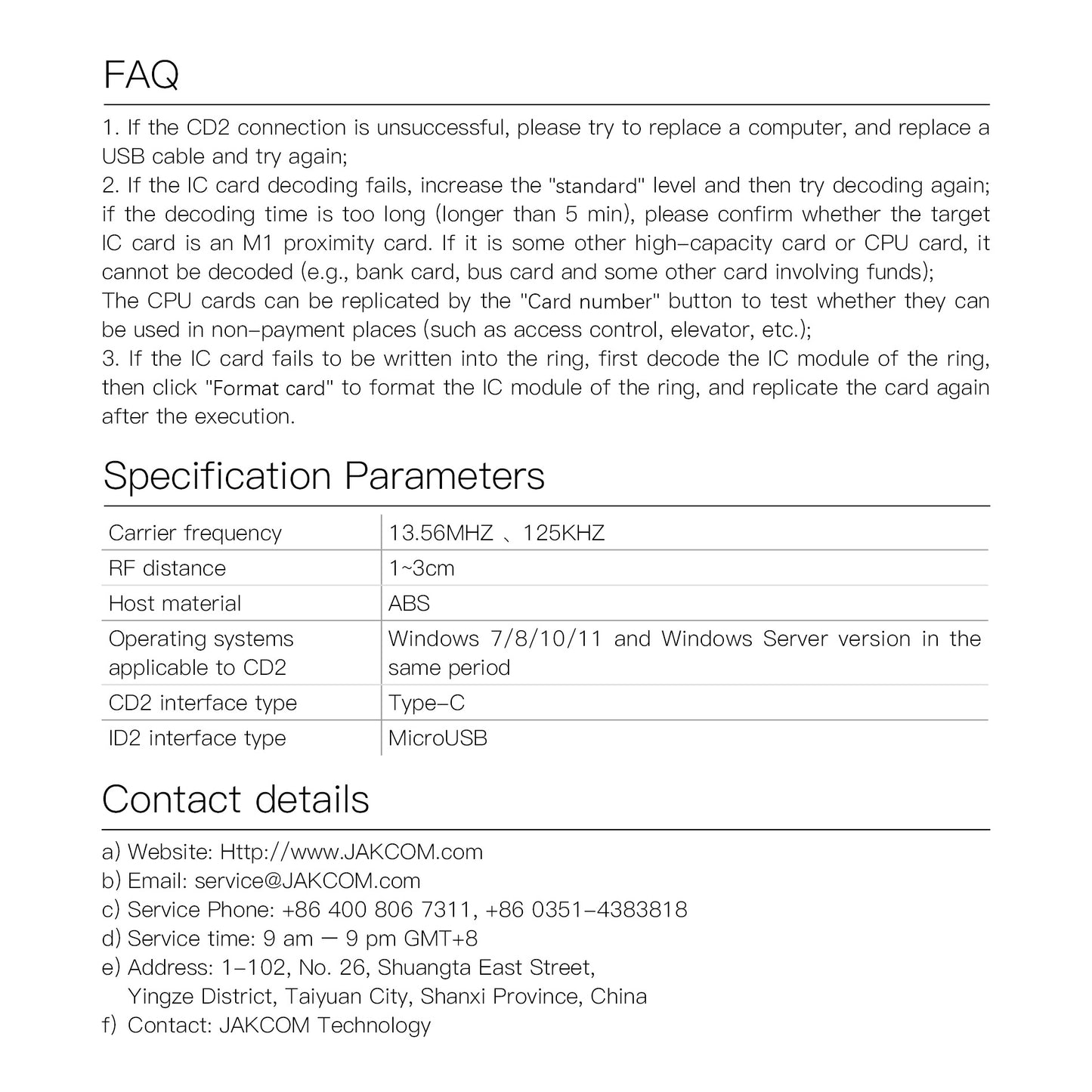

  • FAQ:
    1. If the CD2 connection is unsuccessful, please try to replace a computer, and replace a USB cable and try again;
    2. If the IC card decoding fails, increase the "standard" level and then try decoding again; if the decoding time is too long (longer than 5 min), please confirm whether the target IC card is an M1 proximity card. If it is some other high-capacity card or CPU card, it cannot be decoded (e.g., bank card, bus card and some other card involving funds);
    The CPU cards can be replicated by the "Card number" button to test whether they can be used in non-payment places (such as access control, elevator, etc.);
    3. If the IC card fails to be written into the ring, first decode the IC module of the ring, then click "Format card" to format the IC module of the ring, and replicate the card again after the execution.

    Specification Parameters
    Carrier frequency: 13.56MHZ, 125KHZ
    RF distance: 1~3cm
    Host material: ABS
    Operating systems applicable to CD2: Windows 7/8/10/11 and Windows Server version in the same period
    CD2 interface type: Type-C
    ID2 interface type: MicroUSB
