JAKCOM CD2 RFID Replicator For R4 Smart Ring

JAKCOM CD2 RFID Replicator For R4 Smart Ring

$24.90 USD
$34.90 USD $24.90 USD
Sale Sold out
Shipping calculated at checkout.

Shipping & Returns & Warranty

Free Shipping
From China to Worldwide via SF Express,
Usually, the express takes about 2 weeks to deliver,
Tracking Available.

Free Exchange & Return
You
get 15 days (on top of the on-time delivery date) to decide if you want
to keep or return the item for any reason, as long as they are unused
and in their original condition – complete with the original packaging,
tags, etc.

One Year Warranty
There are any problems with our products within one year,
We will fix or change it for you with free shipping.

JAKCOM CD2 Product Description

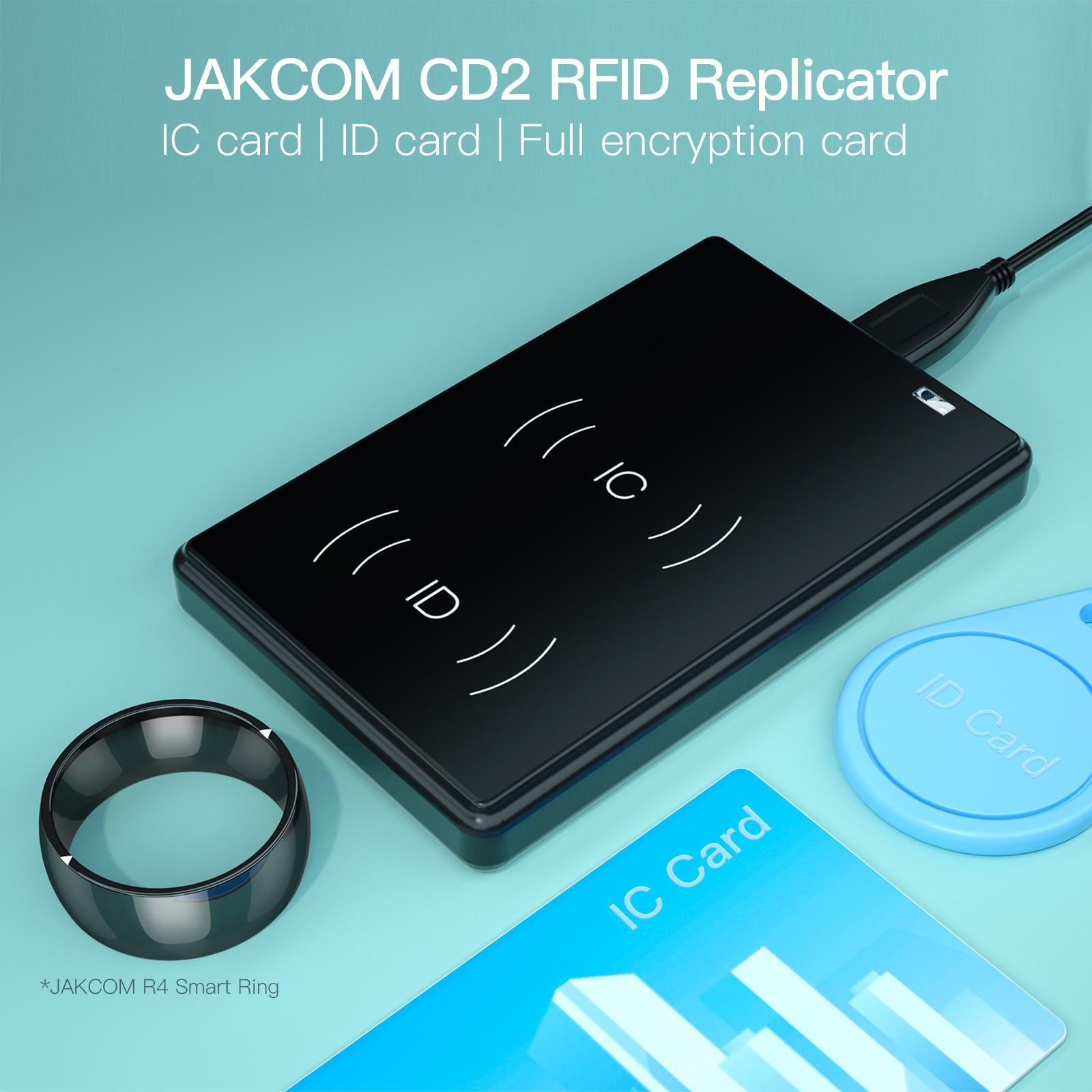

  • JAKCOM CD2 RFID Replicator
    IC card | ID card | Full encryption card

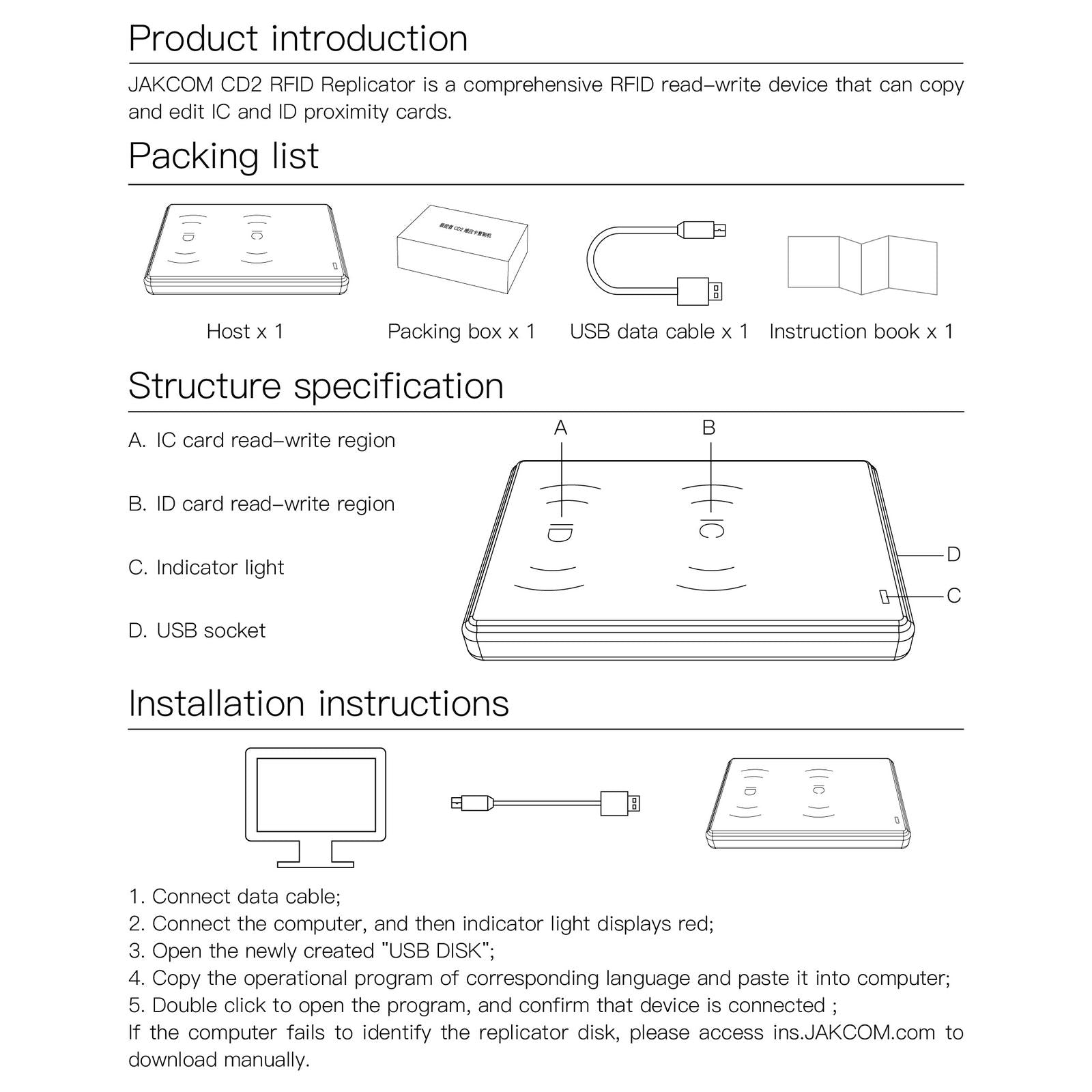

  • Product introduction
    JAKCOM CD2 RFID Replicator is a comprehensive RFID read-write device that can copy and edit IC and ID proximity cards.

    Packing list
    Packing box x 1
    Instruction book x 1
    USB data cable x 1
    Host x 1

    Structure specification
    A. IC card read-write region
    B. ID card read-write region
    C. Indicator light
    D. USB socket

    Installation instructions
    1. Connect data cable;
    2. Connect the computer, and then indicator light displays red;
    3. Open the newly created "USB DISK";
    4. Copy the operational program of corresponding language and paste it into computer;
    5. Double click to open the program, and confirm that device is connected ;
    If the computer fails to identify the replicator disk, please access ins.JAKCOM.com to download manually.

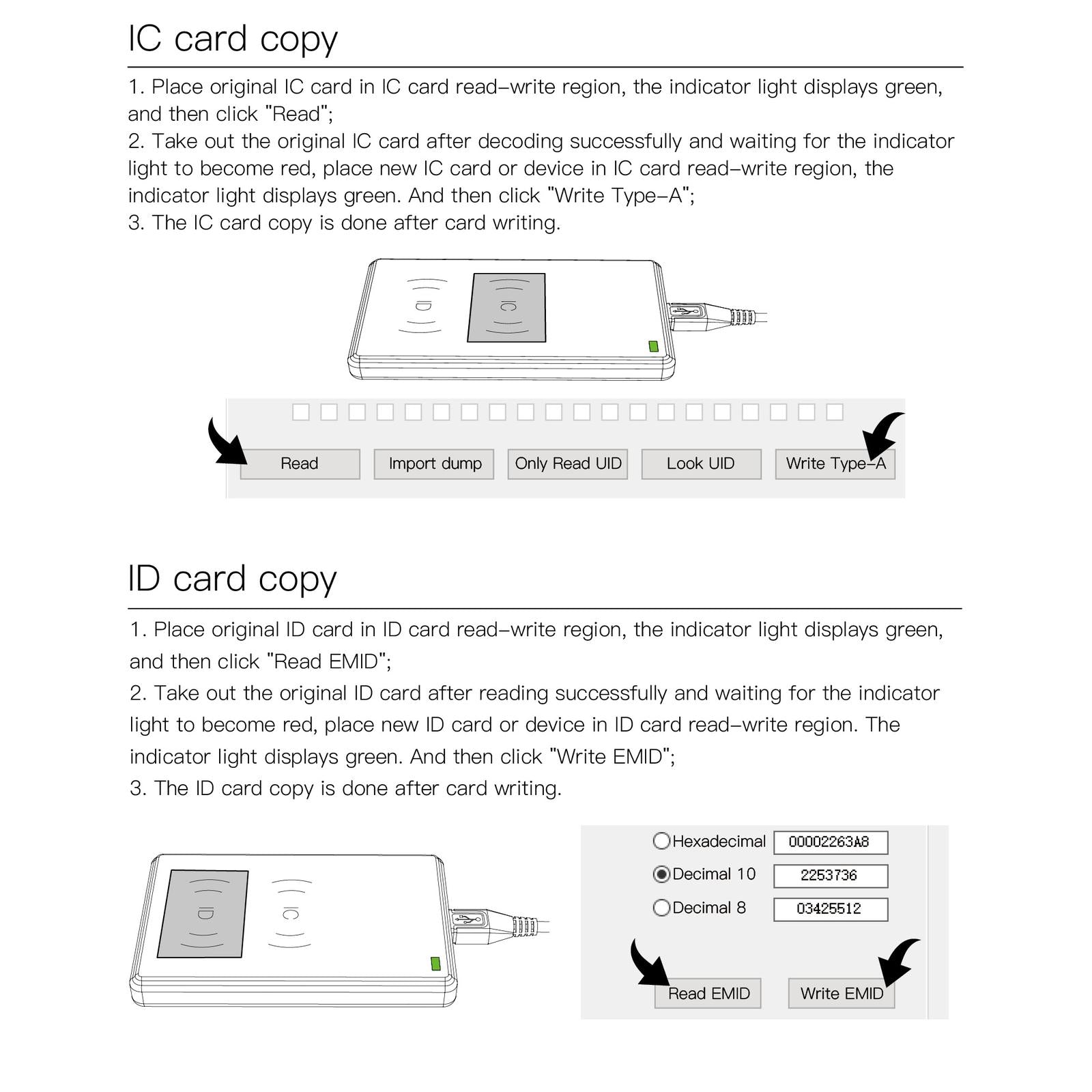

  • IC card copy
    1. Place original IC card in IC card read-write region, the indicator light displays green, and then click "Read";
    2. Take out the original IC card after decoding successfully and waiting for the indicator light to become red, place new IC card or device in IC card read-write region, the indicator light displays green. And then click "Write Type-A";
    3. The IC card copy is done after card writing.

    ID card copy
    1. Place original ID card in ID card read-write region, the indicator light displays green, and then click "Read EMID";
    2. Take out the original ID card after reading successfully and waiting for the indicator light to become red, place new ID card or device in ID card read-write region. The indicator light displays green. And then click "Write EMID";
    3. The ID card copy is done after card writing.

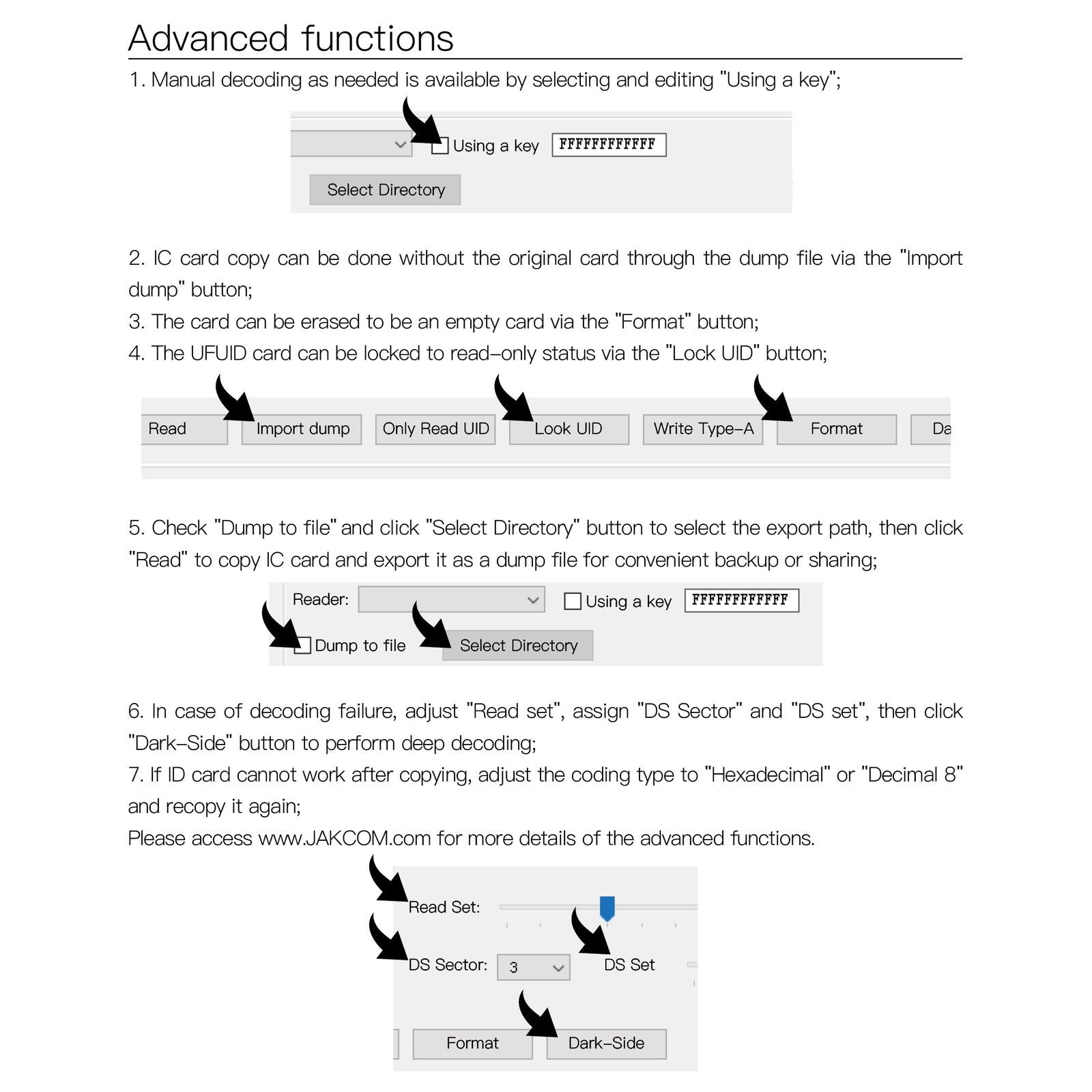

  • Advanced functions
    1. Manual decoding as needed is available by selecting and editing "Using a key";
    2. IC card copy can be done without the original card through the dump file via the "Import dump" button;
    3. The card can be erased to be an empty card via the "Format" button;
    4. The UFUID card can be locked to read-only status via the "Lock UID" button;
    5. Check "Dump to file" and click "Select Directory" button to select the export path, then click "Read" to copy IC card and export it as a dump file for convenient backup or sharing;
    6. In case of decoding failure, adjust "Read set", assign "DS Sector" and "DS set", then click "Dark-Side" button to perform deep decoding;
    7. If ID card cannot work after copying, adjust the coding type to "Hexadecimal" or "Decimal 8" and recopy it again.

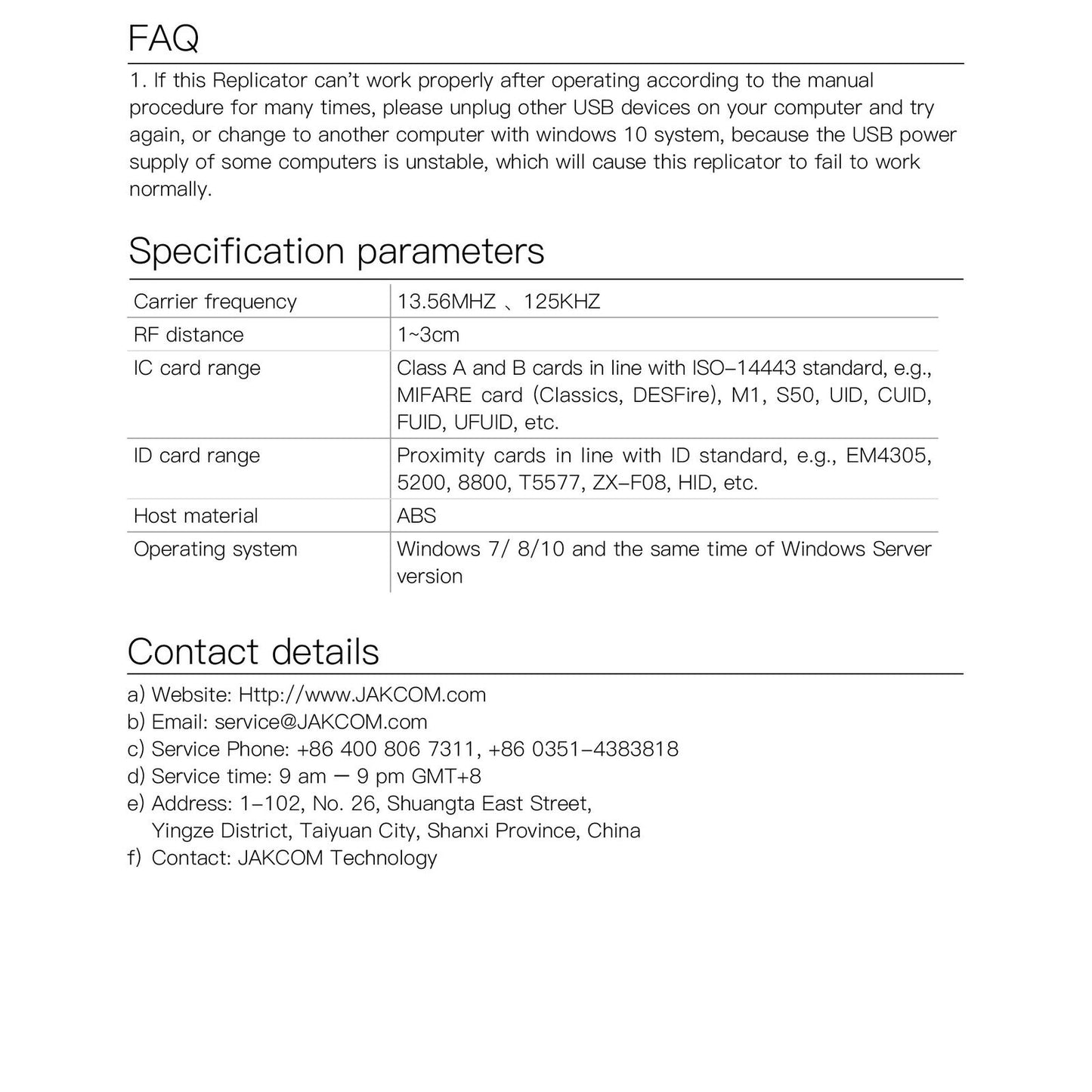

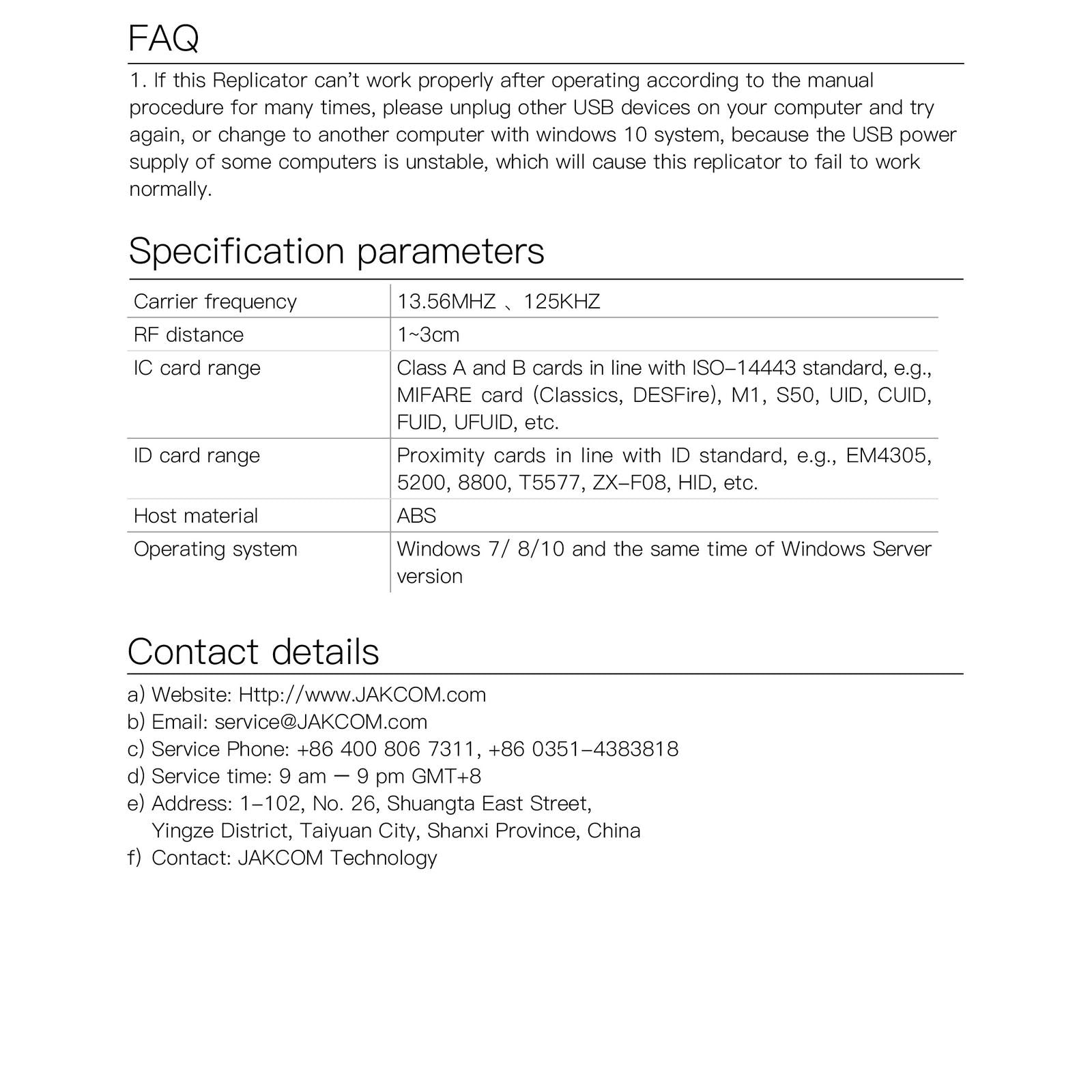

  • FAQ:
    1. If this Replicator can't work properly after operating according to the manual procedure for many times, please unplug other USB devices on your computer and try again, or change to another computer with windows 10 system, because the USB power supply of some computers is unstable, which will cause this replicator to fail to work normally.

    Specification parameters
    Carrier frequency: 13.56MHZ, 125KHZ
    RF distance: 1~3cm
    IC card range: Class A and B cards in line with ISO-14443 standard, e.g., MIFARE card (Classics, DESFire), M1, S50, UID, CUID, FUID, UFUID, etc.
    ID card range: Proximity cards in line with ID standard, e.g., EM4305, 5200, 8800, T5577, ZX-F08, HID, etc.
    Host material: ABS
    Operating system: Windows 7/ 8/10 and the same time of Windows Server version
